Description
Maxitrak – 45mm Mini Planet

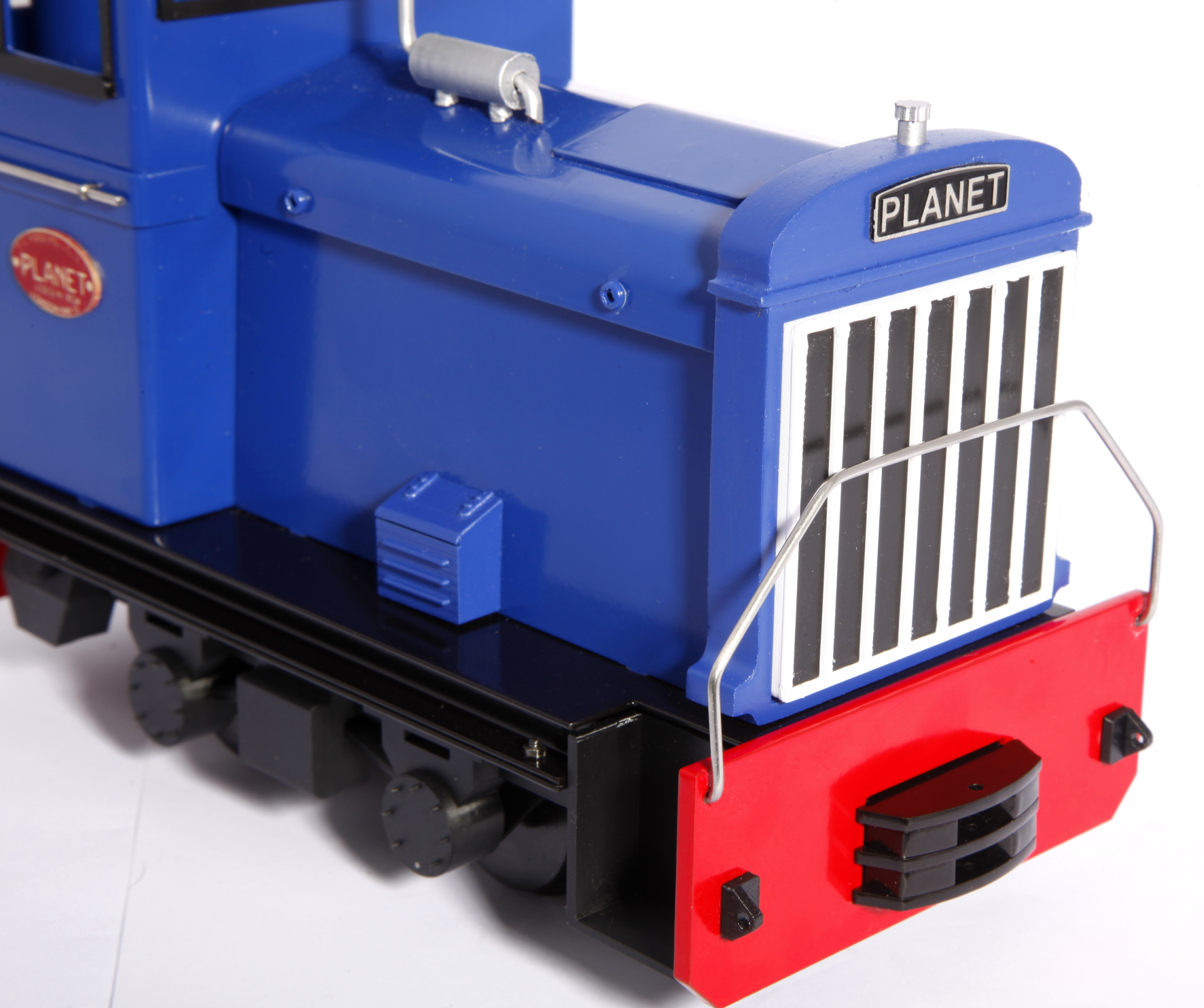

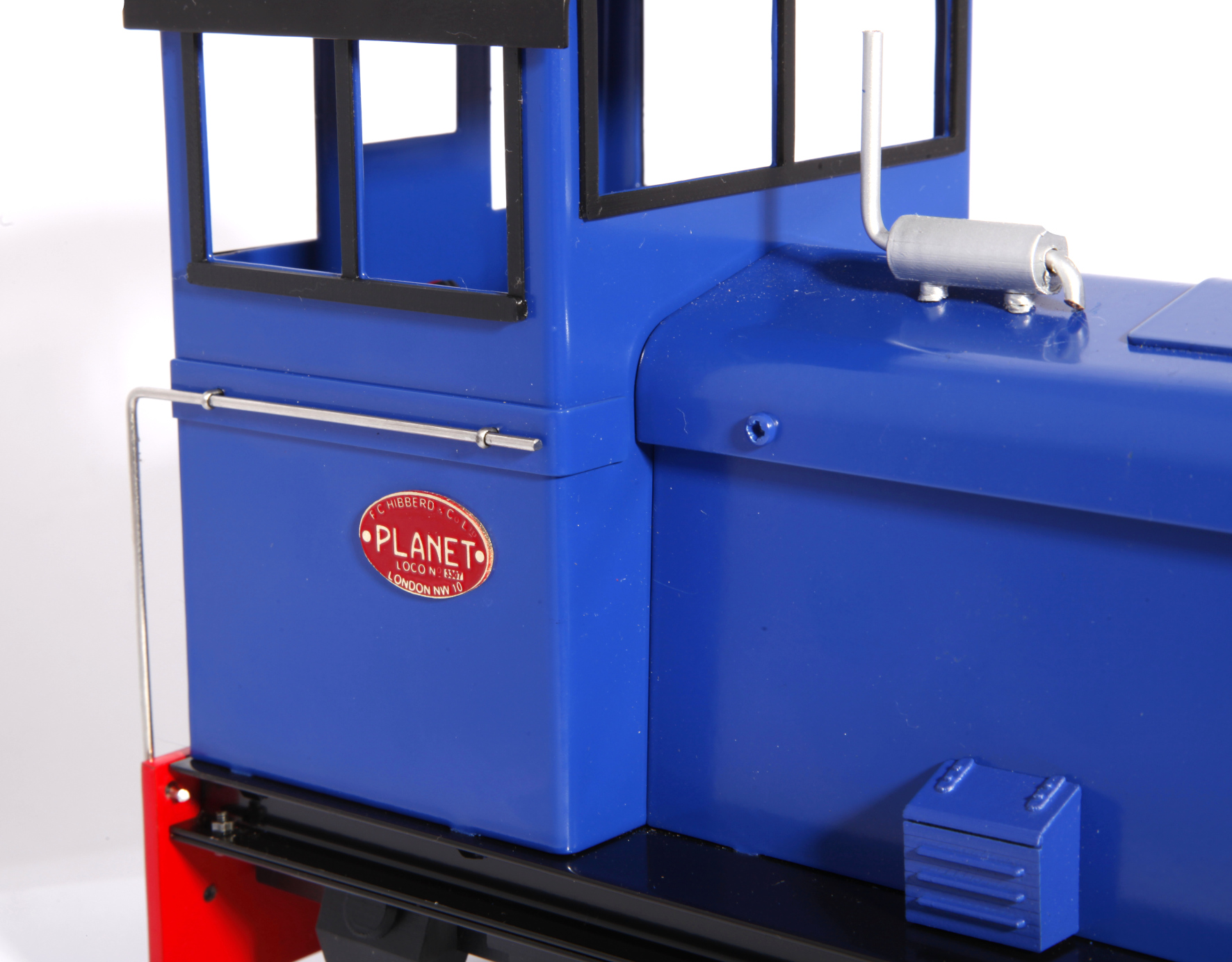

The Maxitrak 16mm Mini Planet is based upon our popular ride behind range of 5″ & 7 1/4″ gauge battery electric locomotives. Our model is based on the 2ft gauge light industrial locomotives manufactured by F.C. Hibbard and Co at their Park Royal works in London. These engines were common in industrial service, both narrow and standard gauge, and were found at many naval dockyards. Our model features an all steel bonnet, chassis and full cab and incorporates the distinctive Planet radiator and makers plates. Constructed with moulded and 3D printed parts to give an enhanced level of detail. Supplied with battery and manual control system as standard, RC available at additional cost.
Specifications:
Scale: 16mm /ft
Gauge: 45mm or 32mm – adjustable
Length: 192mm over buffer beams.
Width: 99mm
Height: 158mm over roof
Wheel Dia: 30mm
Wheelbase: 62mm
Weight: 1.5 kg without battery
Geared: 12v motor with bevel gear drive to rear axle. Delrin chain drive to adjustable front axle or belt drive system.
Powered: 12v Battery
Three pocket coupler, this can be reconfigured to take an Accucraft chopper coupling

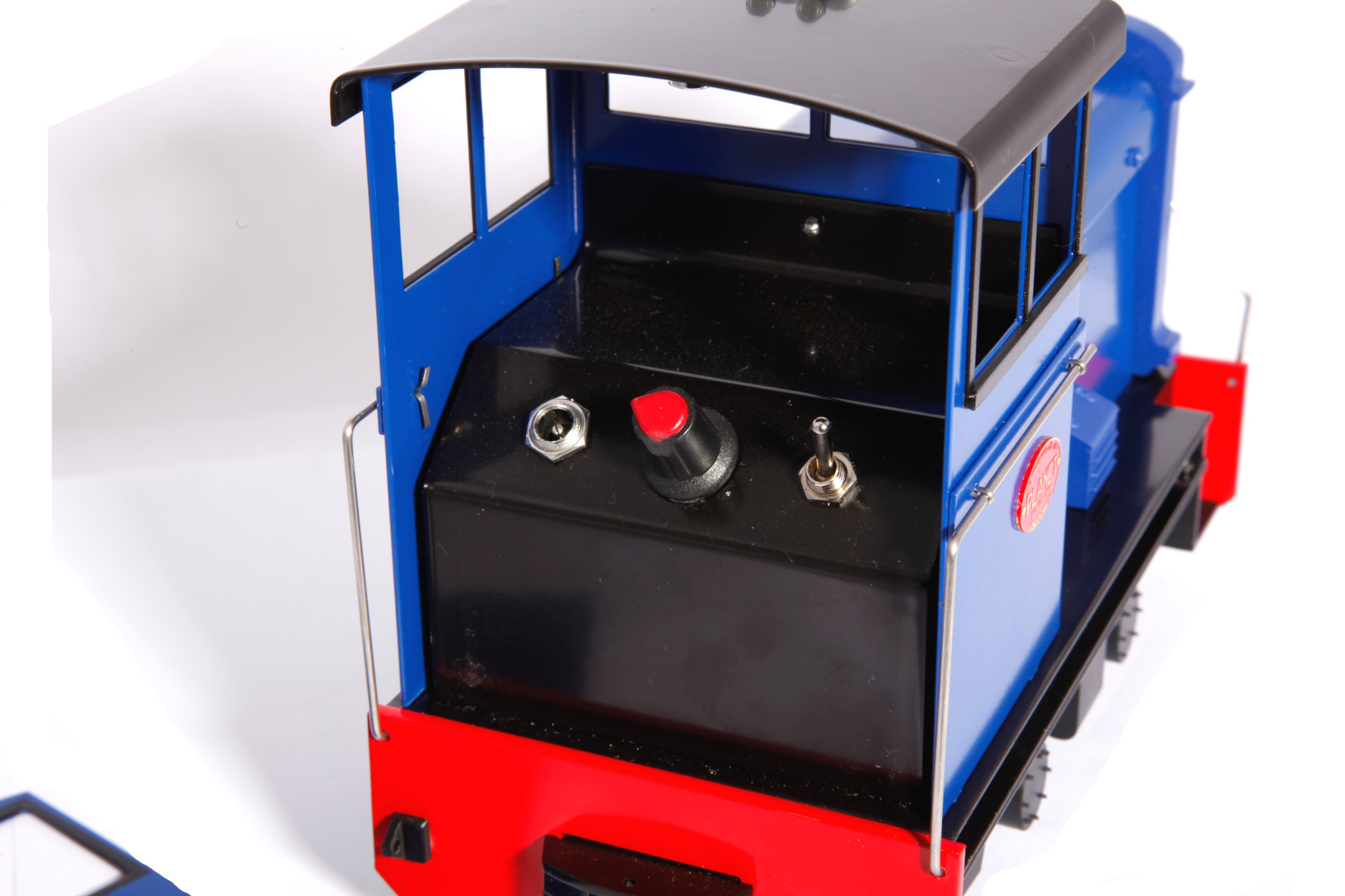

Cab Controls: Manual control with charge point Radio Control & sound options available
Blue body, red buffers and back chassis – standard livery
Other liveries available to special order
Kit RRP: £595.00 – M19-01A manual control
Ready to Run: RRP: £685.00 – M19-01B manual control

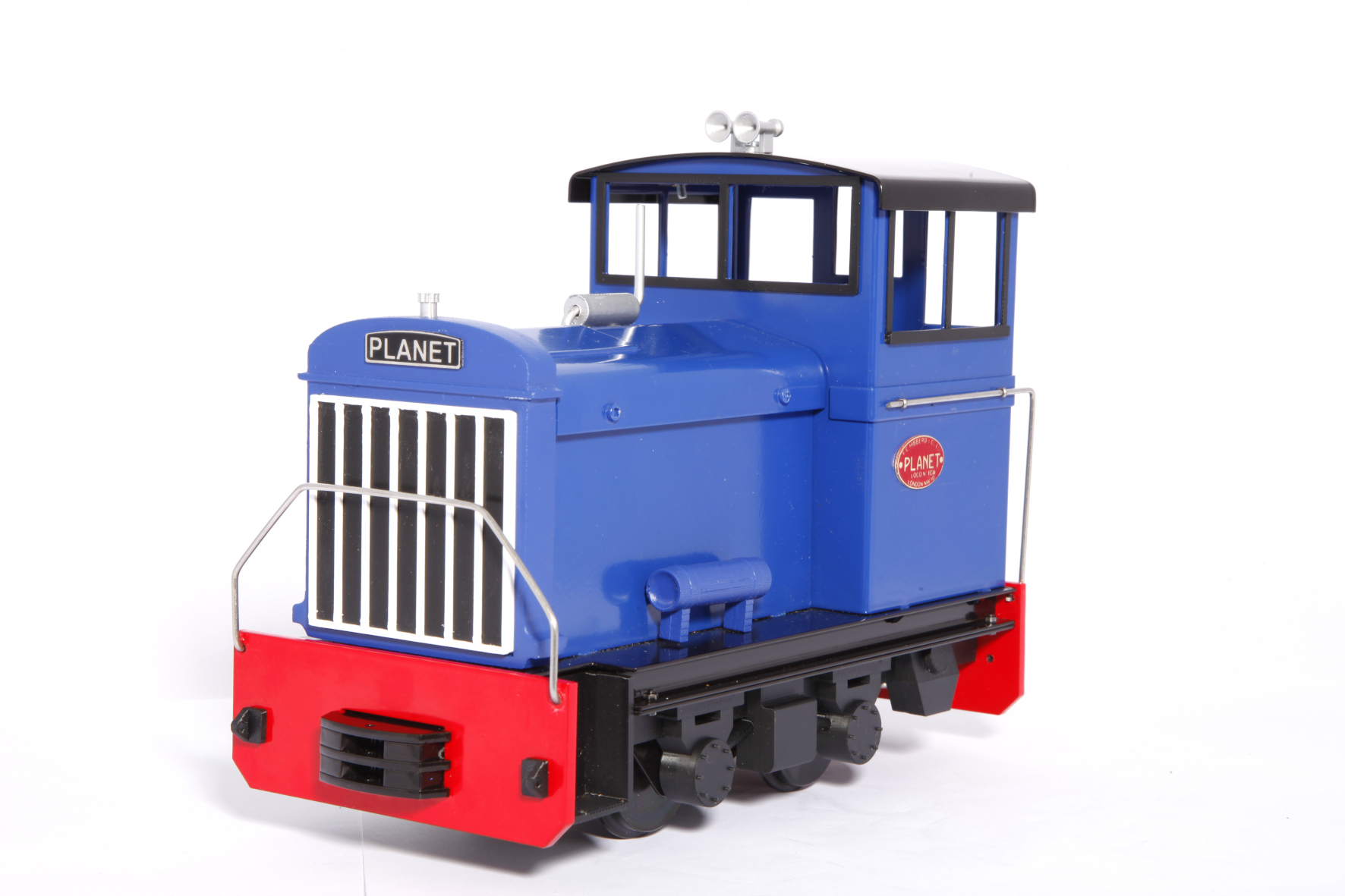

*model photographed is pre production prototype, production models will have minor build differences*
